CT-operated accuracy
Active Class 0.5 / 0.2 and reactive Class 1.0 / 2.0 for demanding commercial and industrial LV connections.
CT-Operated Meters

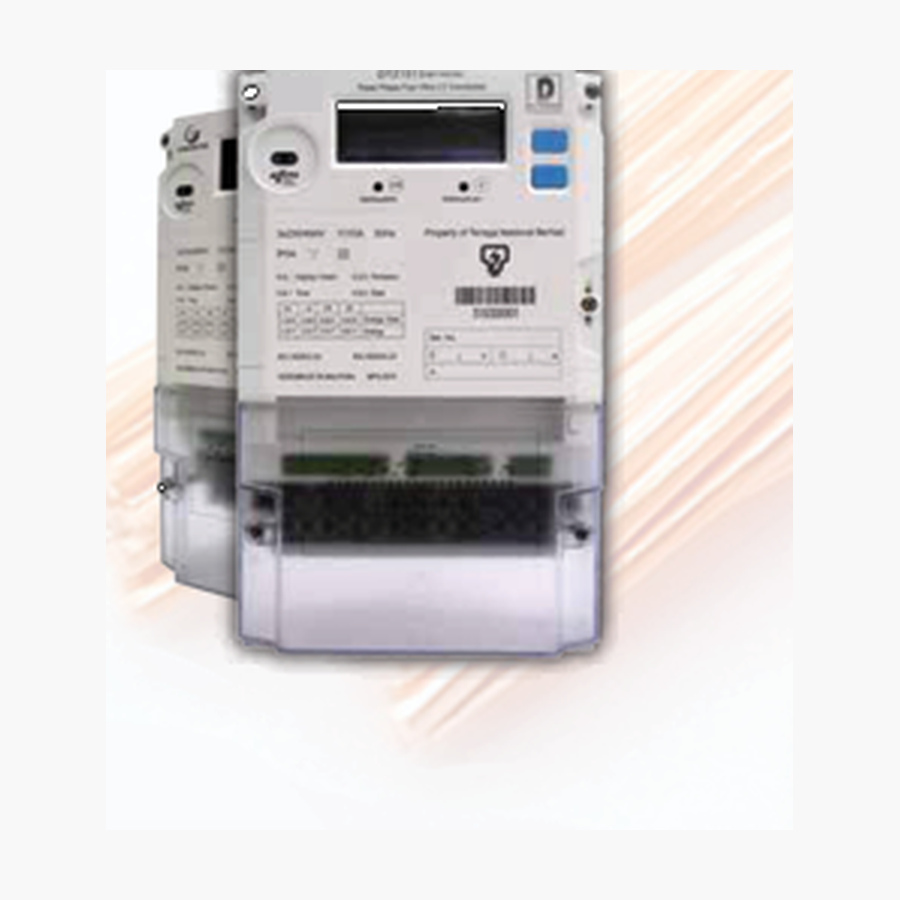

LVCT Meter
Current-transformer operated metering for commercial and industrial low-voltage services — Class 0.5 / 0.2 active accuracy, TOU multi-tariff, and AMI or prepayment readiness.
Product Overview
Precision CT metering for C&I LV services
Built for boundary and industrial low-voltage connections that demand high metrology performance. LVCT supports flexible commercial tariff structures, DLMS/COSEM data exchange, and communication options from RF and PLC to GPRS — including prepayment-ready configurations.
Product brochure with technical data sheet (PDF)
CL 0.5 / 0.2
Active accuracy class
1(5) – 5(10)A
CT current range
IP54
Protection rating
AMI
RF / PLC / GPRS ready
CT operated · CL 0.5 / 0.2 · IP54
Capabilities
Built for C&I LV metering
High-accuracy CT metering with the communication and tariff options utilities need for commercial and industrial LV services.
TOU multi-tariff
Time-of-use and multi-tariff support for flexible commercial billing structures.
AMI-ready communications
RF, PLC and GPRS readiness with modem support and RF to HHU for field operations.
Prepayment ready
Configured for prepayment deployments where utility policy requires prepaid LVCT services.
Anti-tamper protection
Revenue-protection features help secure the metering point against common tamper cases.
DLMS/COSEM exchange
Interoperable data exchange aligned to IEC 62056 for AMI and enterprise system integration.
Standards & compliance
- IEC 62052-11
- IEC 62053-21
- IEC 62053-22
- IEC 62053-23
- IEC 62059-41
- IEC 62056 / DLMS
- IEC 60529 IP54
Technical Data
Meter specification
Official LVCT ratings for engineering, procurement, and deployment planning.
Electrical & metrology
Voltage3×57.5 ~ 240 V / 415 V
Current1(5) A, 5(10) A
Frequency50 Hz
Active accuracyCL 0.5 / 0.2
Reactive accuracyCL 1.0 / 2.0
Impulse5,000 imp/kWh
Communication & tariff
ModemReady
AMI readyRF, PLC & GPRS
Data exchangeIEC 62056 / DLMS/COSEM
TariffsTOU, Multi-Tariff
PrepaymentReady
RF to HHUSupported
Environmental
Temperature−25 °C ~ +80 °C
Protection classIP54 / IEC 60529
Standards & compliance
GeneralIEC 62052-11
EnergyIEC 62053-21, 22, 23
DependabilityIEC 62059-41
Data exchangeIEC 62056-42, 46, 47, 53, 61
For project-specific CT ratios, communication modules, and type-test documentation, contact Delta Prima Metering.
Specify LVCT for your C&I rollout
Our team can help match accuracy class, CT rating, tariff mode, and AMI communication to your utility standard and deployment plan.
