Single-Phase Smart Meter

DDZ1513

Direct-connection single-phase modular AMI meter — one Class 1 metrology body with hot-swappable RF mesh or cellular communication.

View specifications Request quote
Product Overview

Single-phase modular AMI platform

The DDZ1513 is Delta Prima’s direct-connection single-phase smart meter — one metrology body with hot-swappable communication modules. Deploy RF mesh for neighbourhood AMI and hand-held unit reading, or fit a cellular modem for direct remote management without a data concentrator.

Built-in infrared and RS485 ports, DLMS/COSEM compliance, multi-tariff billing, anti-tamper protection, and real-time event detection make DDZ1513 a complete solution for residential and commercial single-phase services.

  • RF Mesh module

    Self-healing neighbourhood AMI network with extended coverage and HHU field reading.

  • Anti-tamper protection

    Detection for magnetic interference, cover opening, and reverse flow.

  • Multi-tariff billing

    Up to 8 tariffs with time-of-use, seasonal, and import/export pricing.

Class 1 Active energy accuracy
1(80) A Direct connection current
IP54 Ingress protection
Hot-swap RF or cellular module
Download RF brochure Download cellular brochure Request quote

Product brochures with technical data sheets (PDF) — RF mesh and cellular variants.

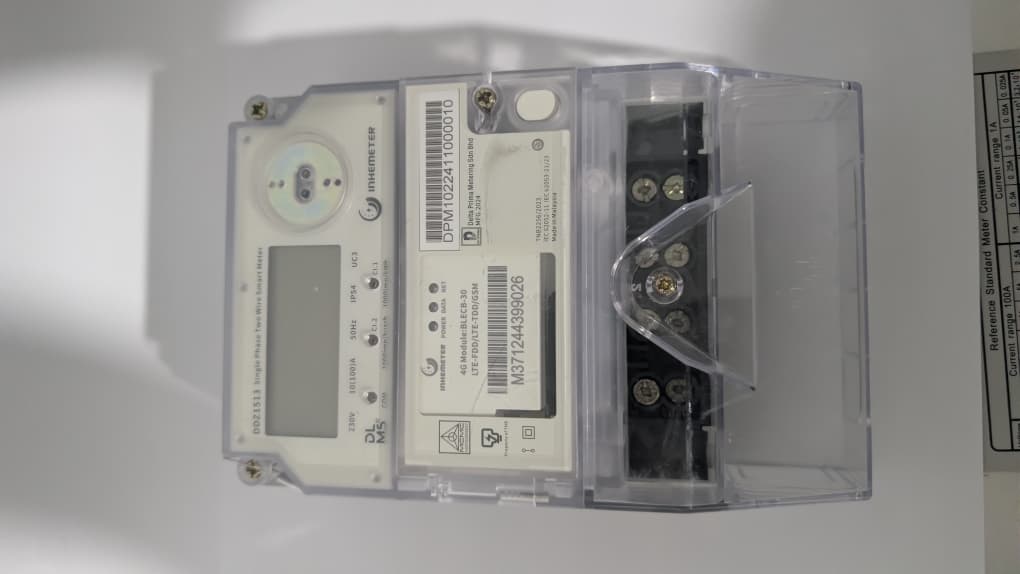

DDZ1513 single-phase RF smart meter — front view

RF mesh · front view

Communication Options

One meter body, two AMI paths

Select the communication module at order — swap later without changing the DDZ1513 metrology platform.

RF Mesh

Neighbourhood AMI

RF mesh connects meters in a self-healing network to a data concentrator. Ideal for dense residential rollouts, HHU field reading, and STS/post-payment billing at scale.

Cellular

Direct remote reading

GPRS/3G/4G/NB-IoT reports directly to the head-end system — no DCU required. Suited for remote sites, high-value accounts, and sparse deployments.

Key Capabilities

Built for single-phase AMI

Shared across RF and cellular DDZ1513 configurations.

Real-time event detection

Instant alerts for tampering, power outages, and critical events to enable rapid response.

Bi-directional metering

Measure both import and export energy for solar installations and distributed generation.

Remote load control

Built-in relay for remote connect/disconnect operations and demand response programs.

Multi-tariff & TOU

Up to 8 tariffs supporting time-of-use, seasonal, and import/export pricing strategies.

Advanced tamper detection

Magnetic interference, cover opening, and reverse flow detection for revenue protection.

Power quality monitoring

Monitor voltage, current, power factor, frequency, and harmonic distortion for grid insight.

Standards & compliance
  • IEC 62052-11
  • IEC 62053-21
  • IEC 62055 series
  • IEC 62056 / DLMS
  • IEC 61000-4-2
  • IP54
Technical Data

Meter specification

Official DDZ1513 ratings — shared metrology with communication module specified at order.

Select communication module

DDZ1513 · RF Mesh

Model DDZ1513 · Single-phase AMI meter

Data sheet

Electrical & metrology

Reference voltage220 V / 230 V / 240 V AC (single-phase)
Operational voltage80%Un – 130%Un
Maximum switching voltage>415 V
Maximum withstand voltagePhase-to-Phase / Phase-to-Neutral: 4 kV, 50 Hz; Phase-to-Earth: 2 kV, 50 Hz
Current1(80) A
Frequency50 Hz / 60 Hz
Accuracy classActive Energy Class 1
Impulse constant1,000 imp/kWh
RelayBuilt in
Measurable quantitiesActive Power, Reactive Power, Apparent Power, Power Factor, Import/export Energy

Communication & interface

Communication interfaceBuilt-in infrared and RS485 port; RF mesh module
ProtocolDLMS/COSEM compliance
RF connectivityRF mesh module for remote management and reading

Display (LCD)

Energy registersActive energy (kWh), Reactive energy (kVARh), Apparent energy (kVAh), Import/export energy
Instantaneous valuesPhase voltages (V), Phase currents (A), Power factor (PF), Frequency (Hz)
Status & diagnosticsTariff registers, Relay/load status, Alarms/fault codes

Tariff

Tariff capacityUp to 8 tariffs
Tariff typesTime of Use, Seasonal Tariffs, Import/Export Tariff

Environmental & protection

Operating temperature−25 °C to +70 °C
Ingress protectionIP54
Lightning protectionBuilt-in varistor
Maximum altitudeUp to 3,500 m
Fire retardant650 °C and 960 °C glow wire tests
Electrostatic discharge (ESD)Constant discharge ±8 kV; Air discharge 15 kV (IEC 61000-4-2)

Standards & compliance

General requirementsIEC 62052-11
Active energyIEC 62053-21
Metering interfaceIEC 62055 series
Data exchangeIEC 62056-21; DLMS and COSEM interoperability
ESD immunityIEC 61000-4-2

For project-specific options and full type-test documentation, contact Delta Prima Metering.

Specify DDZ1513 for your AMI rollout

Our team can help match RF or cellular communication, tariff mode, and deployment topology to your utility standard and project plan.
